MAINLY USED IN
-
OPERATING WEIGHT
16.9 ton
-
BUCKET CAPACITY (SAE HEAPED)
2.7 m³
-
ENGINE POWER (SAE J1995 GROSS)
162 kW (220PS) @ 2,000 rpm
-

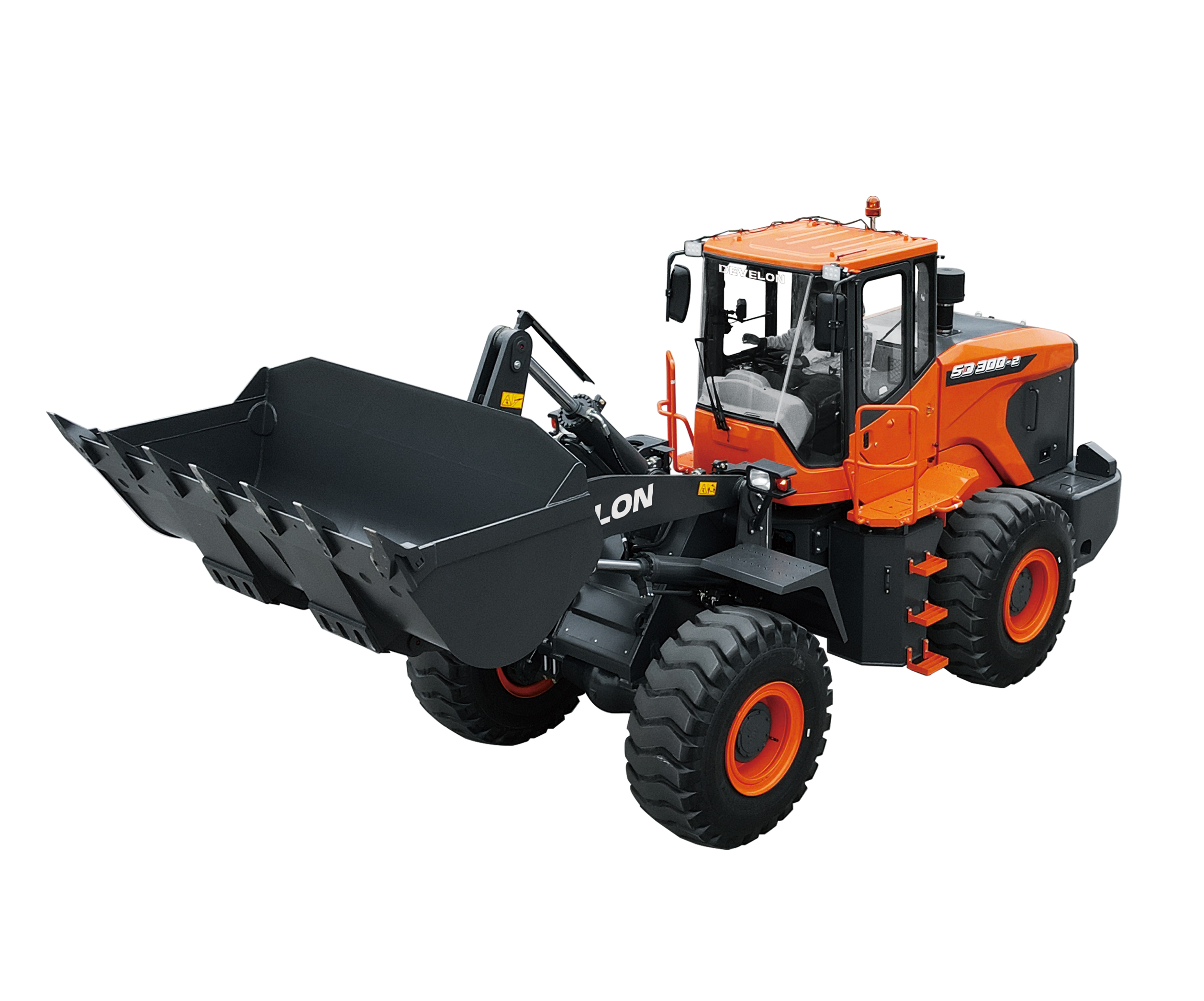

NEW SPECIALIST FOR CONSTRUCTION SITE
• Compelling and iconic silhouette, redesigned into new unstoppable form. SD300-2’s new look exhibits dominant presence with intense new color.
• The all-new cabin features with roomy operational space, intelligent technologies and supportive functional details.
• Robust mechanical engine produce superior power and finely tuned powertrain fully draws it. SD300-2’s optimum tractive power and digging force excel in a high-load work.
• Hydraulic system orchestrated with intelligent features provides excellent control and faster cycles, leading to greater productivity.
• Solid frame structure is designed for optimum durability. Produced and persistently tested to the limits to withstand most severe challenges.
| Classification | SD300-2 |
|---|---|
| Operating Weight | 16.9 ton |
| Bucket Capacity (SAE HEAPED) | 2.7 m³ |
| Engine Power (SAE J1995 Gross) | 162 kW (220PS) @ 2,000 rpm |
| Engine Model | Weichai WD10G220E23 |
| Height at Bucket Pivot Point | 4,102 mm |
| Breakout Force | 164 kN |
| Turning Radius at Tire Center | 6,470 mm |
| Tires | 23.5-25-16PR |
| Overall Length | 8,090 mm |
| Overall Width | 2,992 mm |
| Overall Height | 3,515 mm |
| Static Tipping Load(straight) | 11,400 kg |
Products
| Classification |
|---|
| Operating Weight |
| Bucket Capacity (SAE HEAPED) |
| Engine Power (SAE J1995 Gross) |
| Engine Model |
| Height at Bucket Pivot Point |
| Breakout Force |
| Turning Radius at Tire Center |
| Tires |
| Overall Length |
| Overall Width |
| Overall Height |
| Static Tipping Load(straight) |
| SD300-2 |
|---|
| 16.9 ton |
| 2.7 m³ |
| 162 kW (220PS) @ 2,000 rpm |
| Weichai WD10G220E23 |
| 4,102 mm |
| 164 kN |
| 6,470 mm |
| 23.5-25-16PR |
| 8,090 mm |
| 2,992 mm |
| 3,515 mm |
| 11,400 kg |
